Benchmark Power Solutions (BPS) is headquartered in Douglasville, Georgia and has many years of experience in the engine and generator controls market place.

BPS has developed some advanced packed engine, generator and pump solutions utilizing Deep Sea controllers. They are also a Deep Sea Electronics Distributor and can supply any of you replacement or new equipment components.

Whether you have a generator set or engine driven pump application, they have a standard or custom designed panel to meet your needs.

BPS Genset or Engine Control Panels

Finally an economical replacement Genset Control Panel, available with all the advanced features. Simple to swap-out with the old control panel, often for less than the cost of replacing just one of the components in the old unit.

BPS offers a variety of advanced packaged controllers for all older engine and Tier IV electronic diesel and mechanically governed engine driven applications. These have intelligent engine control modules and features to provide premium control for pumps, compressors, hydraulic applications and off-highway engine driven machinery. The smart design of each control module ensures it combines flexibility with user-friendly operation delivering extremely powerful solutions for multiple applications.

Let us know your needs and we can help select the appropriate control package for you.

The BPS Control Panel gives fully automatic Gen-set Control. Indicates operational status and fault conditions; automatically shuts down the engine and indicates the engine failure with an LCD display and specific flashing LED on panel front. Customer can alter selected timers and alarms from the front of the panel. System configurations are simple. The BPS panel uses the high quality digital electronic controllers, providing you with all the advanced functions.

• able for Engine Control or Pump Control applications.High Quality Control Panel for a simple replacement for any OEM’s control p

Controller Standard Features:

• Easy Pushbutton control

• Microprocessor control

• Advanced Metering

• Event Log

• Digital Inputs

• Relay Outputs

• Analog Inputs

• Multiple Alarm Channels

• Speed Detection via AC Frequency, Engine ECM, or optional Magnetic Pickup (not included).

Universal Genset Application:

· Suitable for Engine Control or on Pump Control applications.

· High Quality Control Panel for a simple replacement for any OEM’s control panel.

· Quickly and easily adjusts for any CT input.

· The low cost allows you to keep one in stock for quick response to service calls.

· Easy Installation/Retrofit

· Competitively Priced

· Metal not plastic enclosure with superior fit & finish.

The Distinctive Attributes includes the following:

• Black Powder Coated Steel Enclosure

• Digital Deep Sea Electronics Controller

• AC Fuse Block & Fuses (600 VAC Rated)

• DC Fuse Holders & Fuses

• Terminal Strips

• Internal Wiring (Color Coded)

• Mounting Isolators (Four)

We offer the control panel in two physical sizes as the smaller panel fits better on smaller generator sets (less than 200 kW).

The physical sizes of the panel including the height of the vibration isolators are as follows:

Large Panel BPS 7310 Dimensions: 11.25”H x 16.75” W x 17.75” D (Standard - Stock)

Small Panel BPS 7310 Dimensions: 11.25”H x 12.75” W x 13.75” D (Only for large orders.)

Large Panel BPS 7420 Dimensions: 11.25”H x 16.75” W x 17.75” D

• Black Powder Coated Steel Enclosure

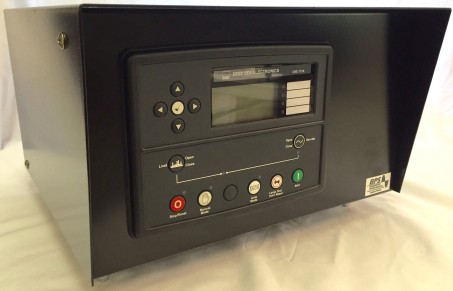

BPS Generator Set Control Panel  -  Features and Benefits

The BPS 7310 is sophisticated Auto-Start Module that is compatible with mechanical or electronic engines - CANbus/J1939.

We use J1939 communication cable with gold plated contacts as is required by the engine manufacturers. It is designed with RS-232, RS-485 ports and optional Ethernet modules supporting various remote control and monitoring capabilities including MODbus and MODbus over TCP/IP, I/O expansion via DSEnet, and a full internal PLC editor.

The BPS 7420 is an advanced programmable mono display Auto Mains - Utility Failure Control Module packed with some of the industries leading features to enhance single-set control.

The panels can be remote mounted and we can supply a wiring harness to the length required, and quoted upon request. Fusing will need to be provided at the generator for the voltage sensing leads and we can provide the fuse block and fuses, contact us for pricing. You will still have a fuse block and fuses inside the panel as well. You will need to run the wires in conduit to meet local and state electrical codes (conduit not included).

Front panel programmable and configurable via free software for field service.

WHY CHOOSE THIS CONTROLLER:

The Deep Sea controller is considerable easier to program than most other control panels. BPS offers to walk your folks through the programming at no charge. DSE7310 has the flexibility to add many more digital or analog input/output expansion modules. DSE7310 allows you to program 4 alternative configurations, (like in a rental multi-voltage unit). It also utilizes industry standard PLC Logic and symbols for programming advanced features, unlike competitors which uses their own proprietary custom language. DSE offers a free cloud based Webnet gateway service for monitoring, diagnostics, establishing a perimeter fence, and run/stop features, (requires landline phone, Ethernet, or cell service and a DSE module).

Following are available optional accessories:

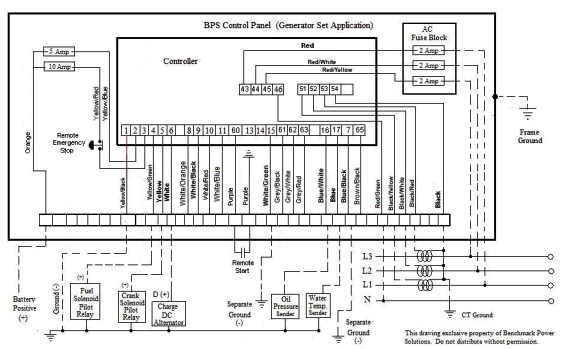

Easy to follow color coded wiring and user friendly schematics:

When placing an order please provide the following information to allow them to do some preliminary programming of the controller: Generator Voltage: ________, DC Voltage:________, Genset KW:________,

CT Ratio:_________

ALSO AVAILABLE:

Custom Genset Panels

A Full Range of Standard and Custom Engine Panels

For any custom or standard Engine or Genset Panels, give us a call !

Deutz TCD 2.9L4 Tier 4

Engine Controller

MTU 1600 Series

Engine Controller

MTU 2400 Series

Engine Controller

BPS-E400 Tier 4 Power Module Control Panels available for:
Caterpillar: 2.2 L - 4 Cylinder and 1.9L - 3 Cylinder.
Deutz: 4 Cylinder Tier 4

MTU 1600 Series, 2400 Series, and S60
John Deere, Isuzu, and other engines.

BPS E400 Pump Control Panel (Can be configured for pump-up or pump-down operation.) :
This engine control module offers flexible control with built-in monitoring and protection. The control module is compatible with Tier 4 electronic and mechanical diesel engines and can be fully configured for a wide range of applications including engine driven pumps and compressors. All engine control functions including engine start, speed, and clutch control can be achieved automatically and manually. The free software and firmware can be simply field updated. Programming is easy and free support is available.

The pricing includes a 10 foot long harness with a Deutsch connector to mate directly to the engine wiring harness connector. Custom lengths are also available to suit your needs.

BPS E400 Pump Control Panel displayed at the PowerGen Trade Show:

The new BPS E050 Engine Color Display & DSEE050 Controller provides configurable engine monitoring functionality for a wide range of engine types and applications like generators, pumps, compressors, etc. Specifically developed to to meet the requirements of J1939, Tier 4F, Stage 5.

It allows users to create custom configurations, event sequences and user interface screens. Users can also add your company's logo to the display’s start-up screen and select a light or dark background when the module is in use, improving operator viewing.

BPS-E050
8"x6"x4" Weather resistant enclosure similar to above with key switch.
5 Foot harness (would need to clarify your plug)

This has different levels of password protection so you can lock the speed to prevent customer access.

Your Logo can be added to appear at the start.
(Packaged in a similar enclosure as above.)

E-Stop: Emergency Stop in enclosure available with or without a key.
